Development of Two Heliodon Systems and Recommendations for their Use

Heliodons aid the building design process by allowing the simulation of different solar angles with respect to physical scale models. At MIT, two different variations of this setup are being developed. The first one consists of a small, portable heliodon that is manually operated, and meant for use outdoors with the real sun and sky. The second is a larger indoor setup that consists of a computer-controlled moving table exposed to a stationary light source. A computer interface allows the designer to automatically take useful sets of model photos from a camera positioned next to or inside a model. Both approaches are presented in this paper and their limitations, causes of inaccuracy and potentialities are discussed based on experimental verification and through Radiance simulations. The results of a usability study with student volunteers and a case study on an existing research space on the MIT campus are also presented.


Published in:
Proceedings of SOLAR 2007: Sustainable Energy Puts America to Work
Presented at:
SOLAR 2007: Sustainable Energy Puts America to Work, Cleveland, July 7-12, 2007
Year:
2007
Note:
oral
Laboratories:




 Record created 2010-10-25, last modified 2018-09-13

n/a:

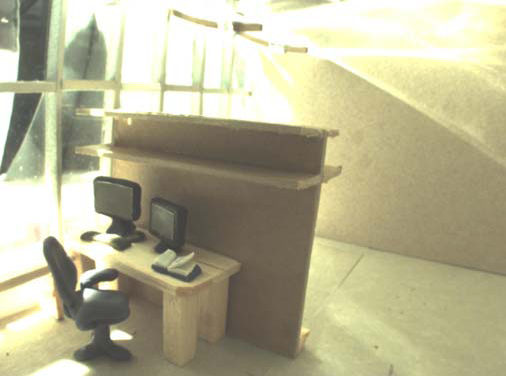

16_2007_SOLAR Heliodons - Download fulltextPNG
Development of Two Heliodon Systems - Download fulltextPDF
