research article

Positional, metric, and curvature control for constraint-based surface deformation

Eigensatz, Michael
•
Pauly, Mark
2009
Computer Graphics Forum

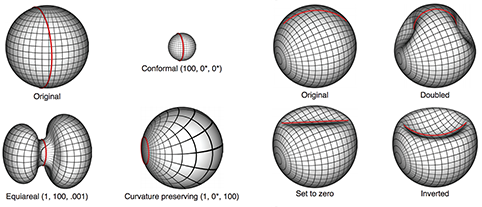

We present a geometry processing framework that allows direct manipulation or preservation of positional, metric, and curvature constraints anywhere on the surface of a geometric model. Target values for these properties can be specified point-wise or as integrated quantities over curves and surface patches embedded in the shape. For example, the user can draw several curves on the surface and specify desired target lengths, manipulate the normal curvature along these curves, or modify the area or principal curvature distribution of arbitrary surface patches. This user input is converted into a set of non-linear constraints. A global optimization finds the new deformed surface that best satisfies the constraints, while minimizing adaptable measures for metric and curvature distortion that provide explicit control of the deformation semantics. We illustrate how this approach enables flexible surface processing and shape editing operations not available in current systems. © 2008 The Eurographics Association and Blackwell Publishing Ltd.

  • Files
  • Details
  • Metrics
Loading...
Thumbnail Image
Name


Type

Thumbnail

Access type

openaccess

License Condition

copyright

Size

114.9 KB

Format

PNG

Checksum (MD5)

8db4cb1696305308cfbcb8ba20b90800

Loading...
Thumbnail Image
Name

paper.pdf

Type

Postprint

Version

Accepted version

Access type

openaccess

License Condition

copyright

Size

12.56 MB

Format

Adobe PDF

Checksum (MD5)

412fc5c537e3ac4448f6380281057f1b
