Including of specular component in a BTDF or BRDF assessment based on digital imaging

Bi-directional Transmission (or Reflection) Distribution Functions, commonly named BTDFs (and BRDFs), are essential quantities to describe any complex fenestration system in details. They are defined as the ratio of the luminance diffused from a surface element in a given direction (after transmission or reflection), and the illuminance incident on the sample. However, these functions are capable of describing the regular (specular) as well as the diffuse components of emerging light, and their mutual knowledge is necessary to assess a glazing or shading system’s optical performances properly. Although the analytical expression of a BT(R)DF differs whether it is related to regular (specular) or diffuse light, a simultaneous assessment of the two components can be achieved under certain conditions, presented in this paper. They are thereafter analyzed for the particular data acquisition procedure developed for a novel type of bi-directional photogoniometer, based on digital imaging.

Presented at:
CISBAT 2003 - Innovation in building envelopes and environmental systems, EPFL, Lausanne, October 8-9, 2003

 Record created 2005-01-12, last modified 2018-03-18

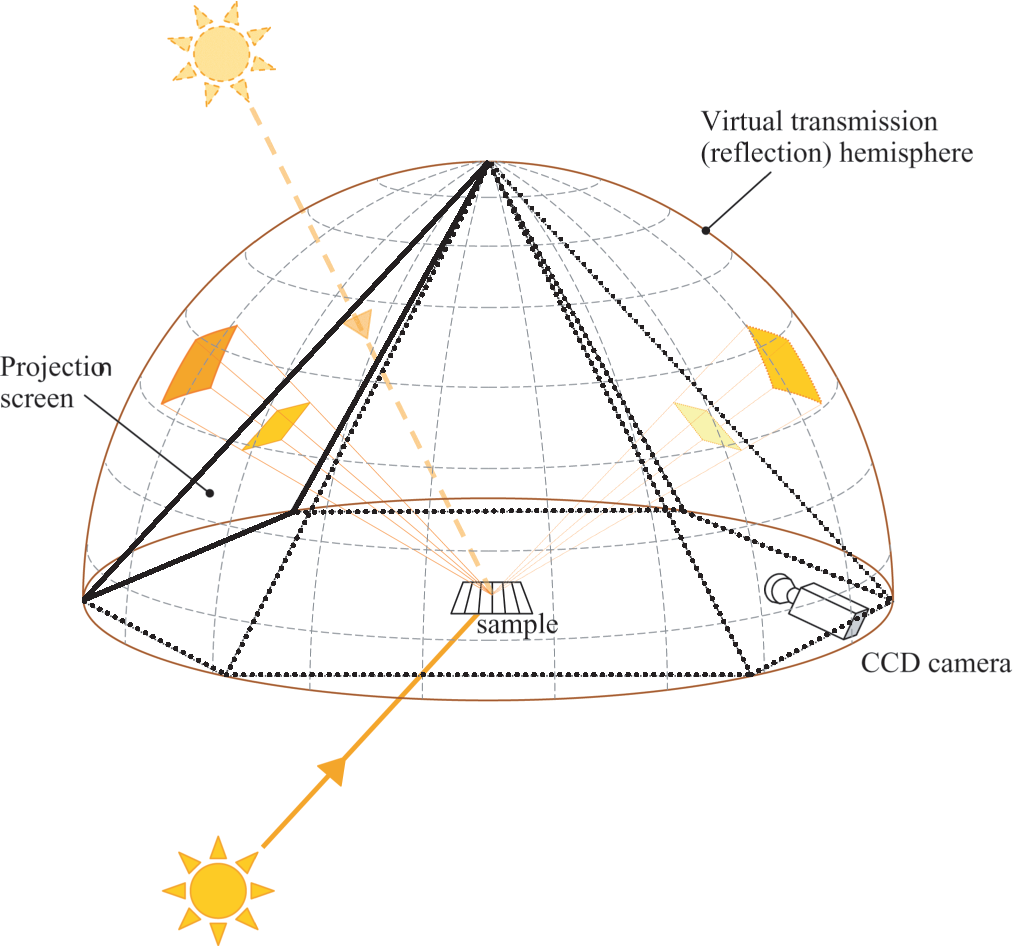

07_2003_CISBAT DiffSpecBTDF - Download fulltextPNG
Including of Specular Component in a BTDF of BRDF Assessment - Download fulltextPDF
External link:
Download fulltextURL
