  4. Rapid Deployment of Curved Surfaces via Programmable Auxetics

research article

Rapid Deployment of Curved Surfaces via Programmable Auxetics

Konakovic-Lukovic, Mina
•
Panetta, Julian
•
Crane, Keenan
Show more
August 1, 2018
Acm Transactions On Graphics

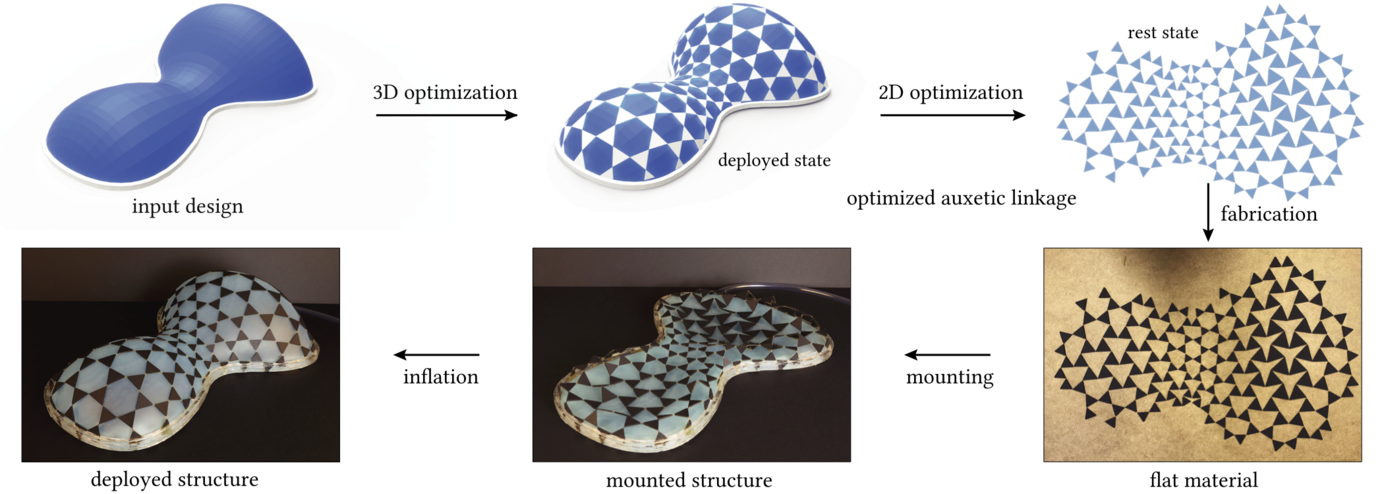

Deployable structures are physical mechanisms that can easily transition between two or more geometric configurations; such structures enable industrial, scientific, and consumer applications at a wide variety of scales. This paper develops novel deployable structures that can approximate a large class of doubly-curved surfaces and are easily actuated from a flat initial state via inflation or gravitational loading. The structures are based on two-dimensional rigid mechanical linkages that implicitly encode the curvature of the target shape via a user-programmable pattern that permits locally isotropic scaling under load. We explicitly characterize the shapes that can be realized by such structures-in particular, we show that they can approximate target surfaces of positive mean curvature and bounded scale distortion relative to a given reference domain. Based on this observation, we develop efficient computational design algorithms for approximating a given input geometry. The resulting designs can be rapidly manufactured via digital fabrication technologies such as laser cutting, CNC milling, or 3D printing. We validate our approach through a series of physical prototypes and present several application case studies, ranging from surgical implants to large-scale deployable architecture.

  • Files
  • Details
  • Metrics
Loading...
Thumbnail Image
Name


Type

Thumbnail

Access type

openaccess

License Condition

copyright

Size

549.53 KB

Format

PNG

Checksum (MD5)

61eca5428731438cd5f9d4d79d7dbaf8

Loading...
Thumbnail Image
Name

paper.pdf

Type

Postprint

Version

http://purl.org/coar/version/c_ab4af688f83e57aa

Access type

openaccess

License Condition

copyright

Size

8.65 MB

Format

Adobe PDF

Checksum (MD5)

9b50de77ccfaac976a2f5b5f14738b9e
